100-255-S Product Image

100-255-S Single Centered Captive Extended Fin Aluminum Extrusion for 1/4″ Panel

$12.98 – $32.95



SINGLE CAPTIVE EXTENDED FIN Aluminum Extrusion (CENTERED) FOR 1/4″ PANEL

Standard Lengths: 48 & 94 Inches (98 inches available)
Custom cutting options available
Finishes Available: Black, Clear Satin Anodize, and Custom Colors

        Use with the following extrusions:

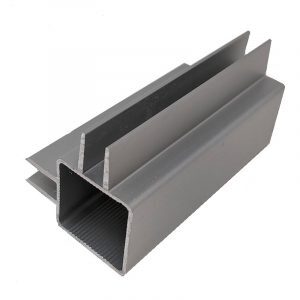

        100-100, 100-263-S, 100-283-S, 100-290-S

        Assembles with all Connectors
Clear

For use with our snap-fit Quick-Release connectors

# of cuts per tube. This will be multiplied by the quantity of this line item added to your cart.

Please provide custom cutting instructions below, specifying quantities and lengths of cuts, allowing for a blade thickness of 0.125″ per cut.

Specify the number of additional holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

SKU: 100-255-SC Categories: ,

Aluminum Extrusions

Single Centered Captive Extended Fin Aluminum Extrusion for 1/4" Panel

  • 6063 T-5 Aluminum
  • Size: 1.00″ Square
  • Wall Thickness: .050″
  • Finishes Available: Clear Satin Anodize, Black Powder Coat, or Custom Color

Additional information

Weight 2 lbs
Dimensions 94 × 1 × 1 in
Length & Color , , , , , ,
