160 2-Way Double I-Fin Square Aluminum Extrusion for 1/4″ Recessed Panel

$13.13$32.25



100-160 2-Way Aluminum Fin for 1/4″ Recessed Panel
Standard Lengths: 48 & 94 Inches (98 inches available)

Custom cutting options available
Finishes Available: Black, Clear Satin Anodize, and Custom Colors

        Use with the following extrusions:

        100-100100-130100-190

         Assembles with all Connectors

Clear

For use with our snap-fit Quick-Release connectors

# of cut pieces per tube

Length of custom cuts
Example: (5) @ 10.00″, (10) @ 6.00″

Specify the number of custom holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

Quantity Discount Price
99 – 148 1% From $13.00
149 – 198 3% From $12.74
199+ 5% From $12.47
SKU: 100-160 Categories: ,

Aluminum Extrusions

2-Way Fin For 1/4″ Recessed Panel

  • 6063 T-5 Aluminum
  • Size: 1.00″ Square
  • Wall thickness: .050″
  • Finishes Available: Clear Satin Anodized, Matte Black Powder Coated, or Custom Color

Additional Information

Weight 3 lbs
Dimensions 94 × 1 × 1 in
Tube Color

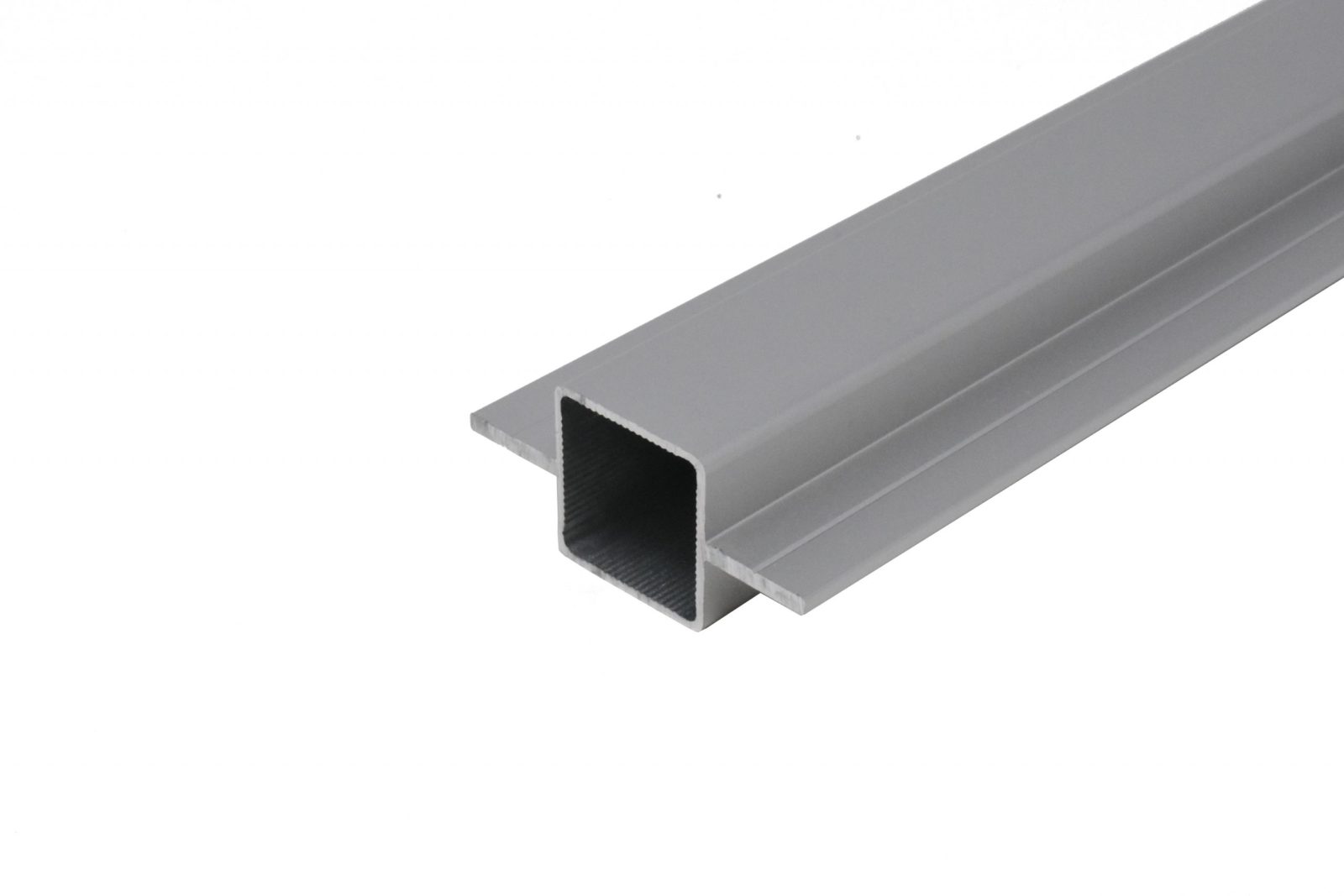

Satin Silver Anodized

Clear Satin Silver Anodized

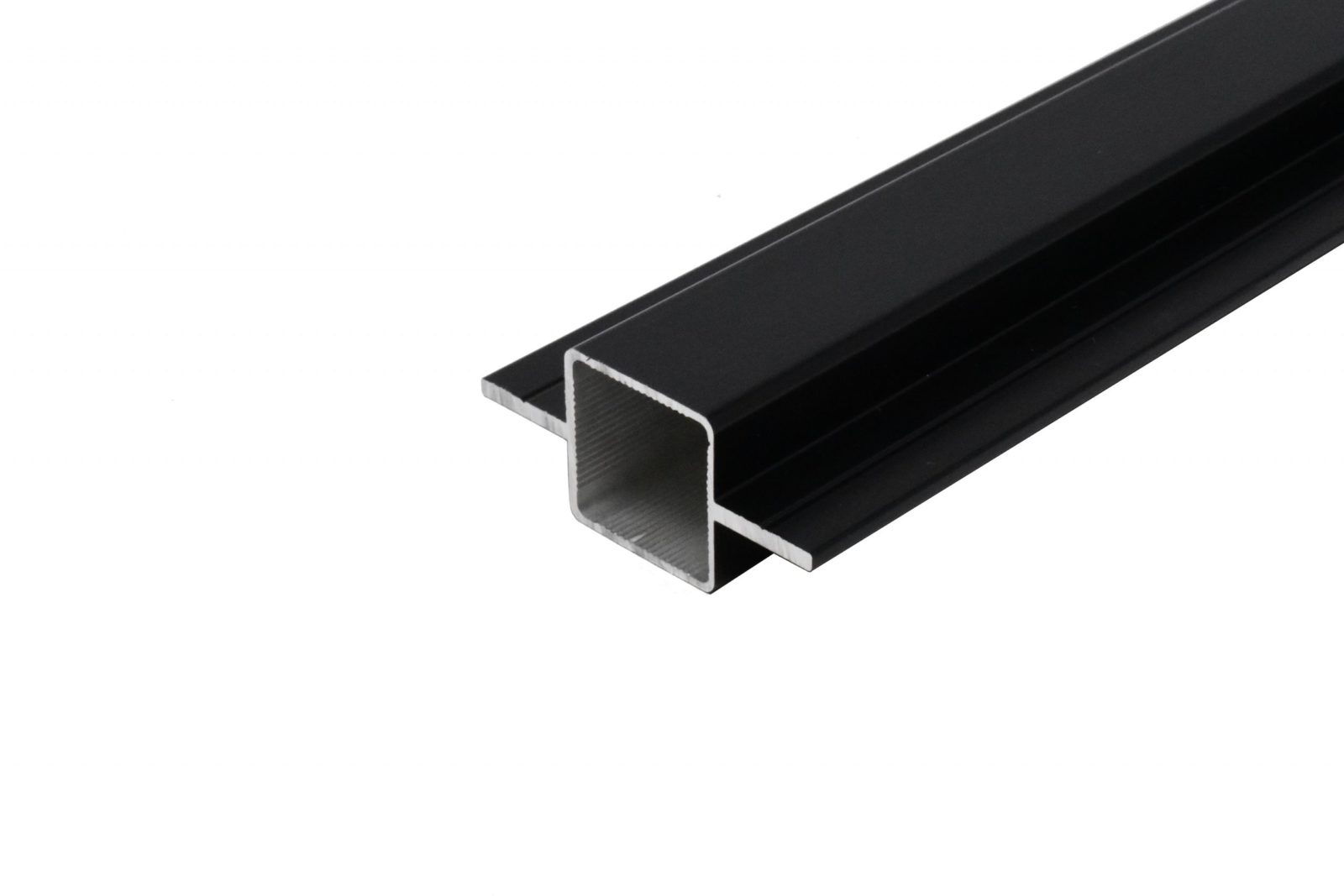

Matte Black Powder Coated

Matte black powder coated finish

Gloss White Powder Coated

Gloss white powder coated finish

Tube Length 48 in • 1,219.2 mm

4 feet (48 inch)/1,219.2 millimeters

, 94 in • 2,387.6 mm

94 inches (7.8 feet)/2,387.6 millimeters

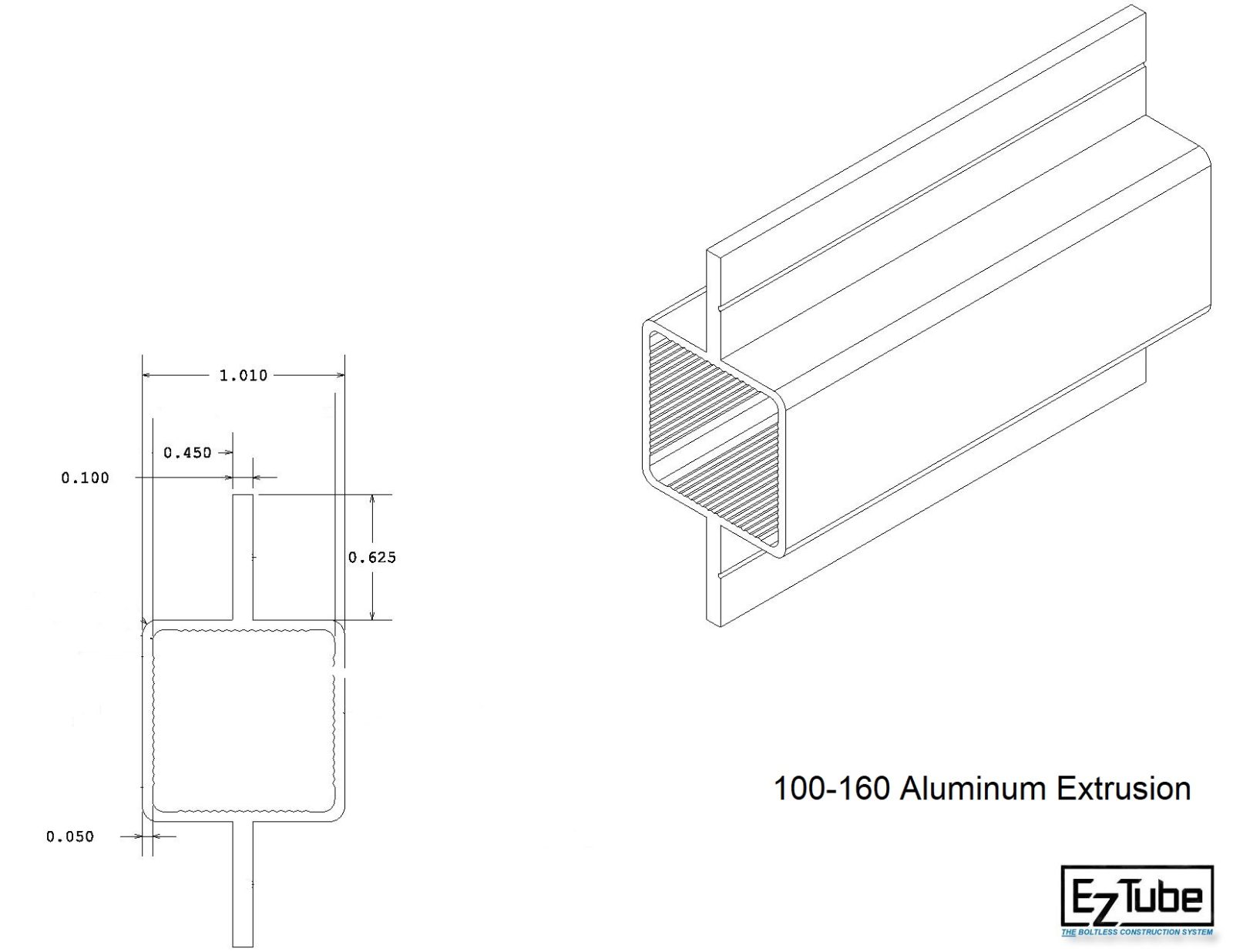

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-160 48 inches

100-160
