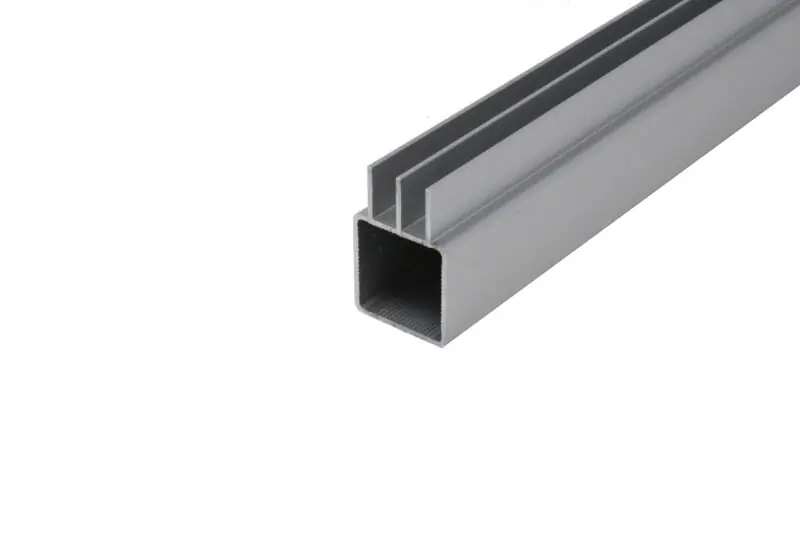

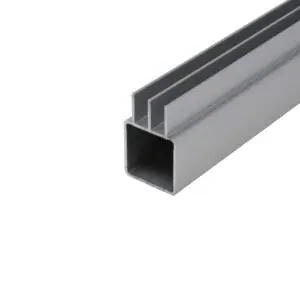

100-240-U Upper Sliding Door Track Tube for 1/4" Panel
100-240-U Upper Sliding Door Track Tube for 1/4" Panel in Matte Black Powder Coating
  1. 100-240-U Upper Sliding Door Track Tube for 1/4" Panel
  2. 100-240-U Upper Sliding Door Track Tube for 1/4" Panel in Matte Black Powder Coating

240-U Upper Sliding Door Track W-Slot Linear Rail Square Aluminum Extrusion for 1/4″ Panel

$15.48 – $34.95



(Upper) Sliding Door Track Aluminum Extrusion for 1/4″ Panel

Standard Lengths: 48 & 94 Inches  (98 Inches Available)

Custom cutting options available

Finishes Available: Black, Clear Satin Anodize and Custom Colors

Use with the following extrusions:

100-100, 100-240-LR, 100-242

Assembles with all Connectors

Satin Silver Anodized
Matte Black Powder Coated
Gloss White Powder Coated

Customize this product

Clear

For use with our snap-fit Quick-Release connectors

# of cut pieces per tube

Length of custom cuts
Example: (5) @ 10.00″, (10) @ 6.00″

Specify the number of custom holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

Quantity Discount Price
99 – 148 1% From $15.33
149 – 198 3% From $15.02
199+ 5% From $14.71
SKU: 100-240-U-4 Categories: ,

Aluminum Extrusions

Upper Sliding Door Track for 1/4″ Panel

  • Sliding Track / Upper Section
  • 6063 T-5 Aluminum
  • Size: 1.00″ Square
  • Wall Thickness: .050″
  • Finishes Available: Clear Satin Anodize, Black Powder Coat, or Custom Color
  • Use with the following extrusions: 100-100, 100-240 LR for 1/4″ Panels
  • 98″ Length Extrusion Available
