100-255-S Centered, Single Captive Fin Extruded Aluminum Tube for 1/4″ Panel by EZTube

255-S Single I-Slotted Centered Captive Extended Fin Square Aluminum Extrusion for 1/4″ Panel

$13.98 – $32.95

SINGLE CAPTIVE EXTENDED FIN Aluminum Extrusion (CENTERED) FOR 1/4″ PANEL

Standard Lengths: 48 & 94 Inches (98 inches available)

Custom cutting options available

Finishes Available: Black, Clear Satin Anodized, and Custom Colors

Assembles with all Connectors for use with the following extrusions:

        100-100, 100-263-S, 100-283-S, 100-290-S

Satin Silver Anodized
Matte Black Powder Coated
Gloss White Powder Coated
Centered Extended Captive Fin for 1/4″ Panels (100-255-S)

Customize this product

Clear

For use with our snap-fit Quick-Release connectors

# of cut pieces per tube

Length of custom cuts
Example: (5) @ 10.00″, (10) @ 6.00″

Specify the number of custom holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

Quantity Discount Price
99 – 148 1% From $13.84
149 – 198 3% From $13.56
199+ 5% From $13.28
SKU: 100-255-S-4 Categories: ,

Description

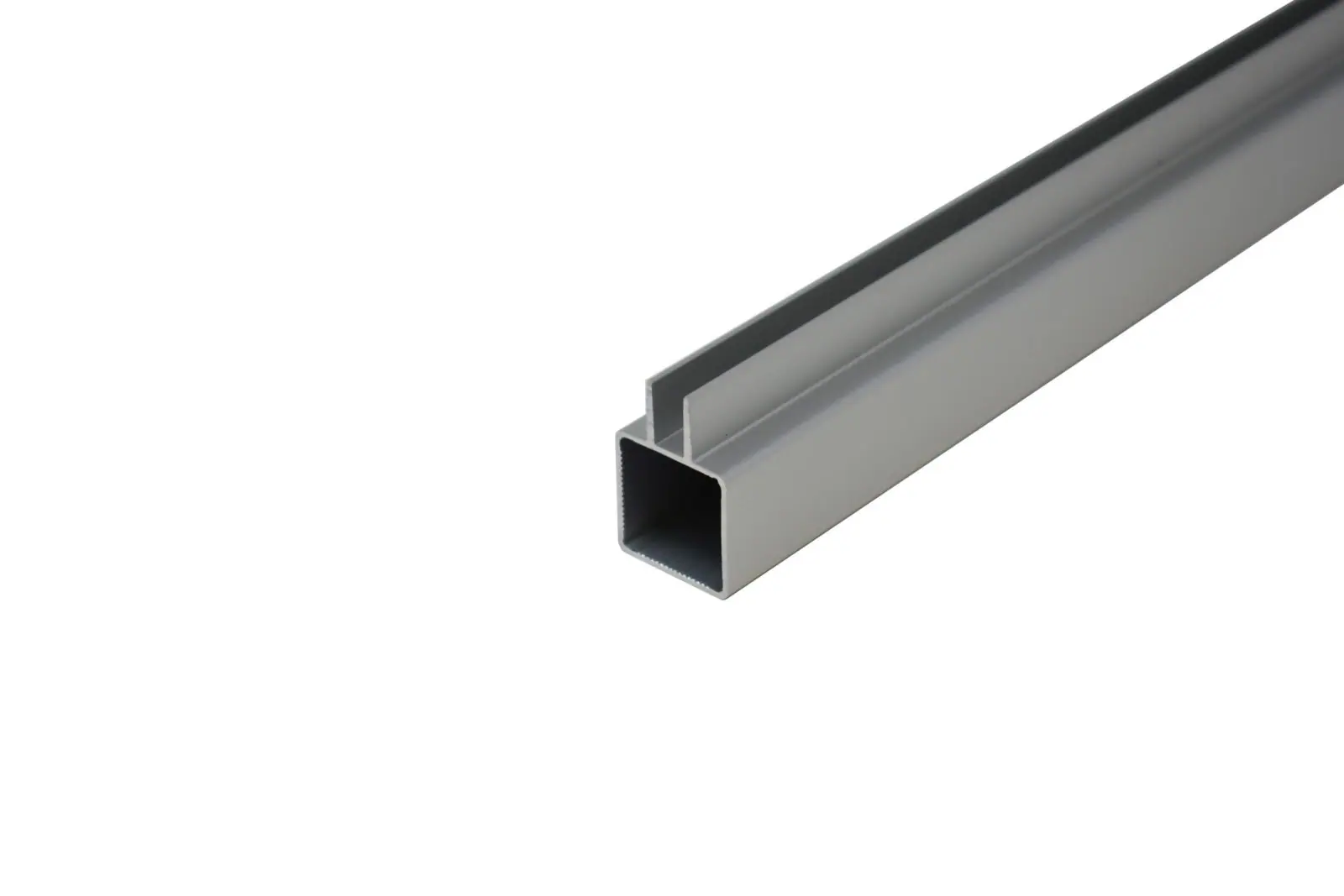

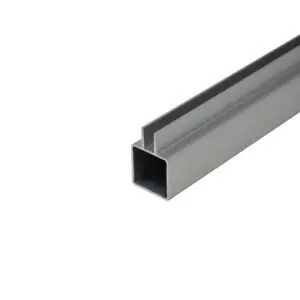

100-255-S Single I-Slotted Centered Captive Extended Fin Aluminum Extrusion for 1/4″ Panel

  • 6063 T-5 Aluminum
  • Size: 1.00″ Square
  • Wall Thickness: .050″
  • Finishes Available: Clear Satin Anodized, Black Powder Coat, or Custom Color

Aluminum Extrusions by EZTube
