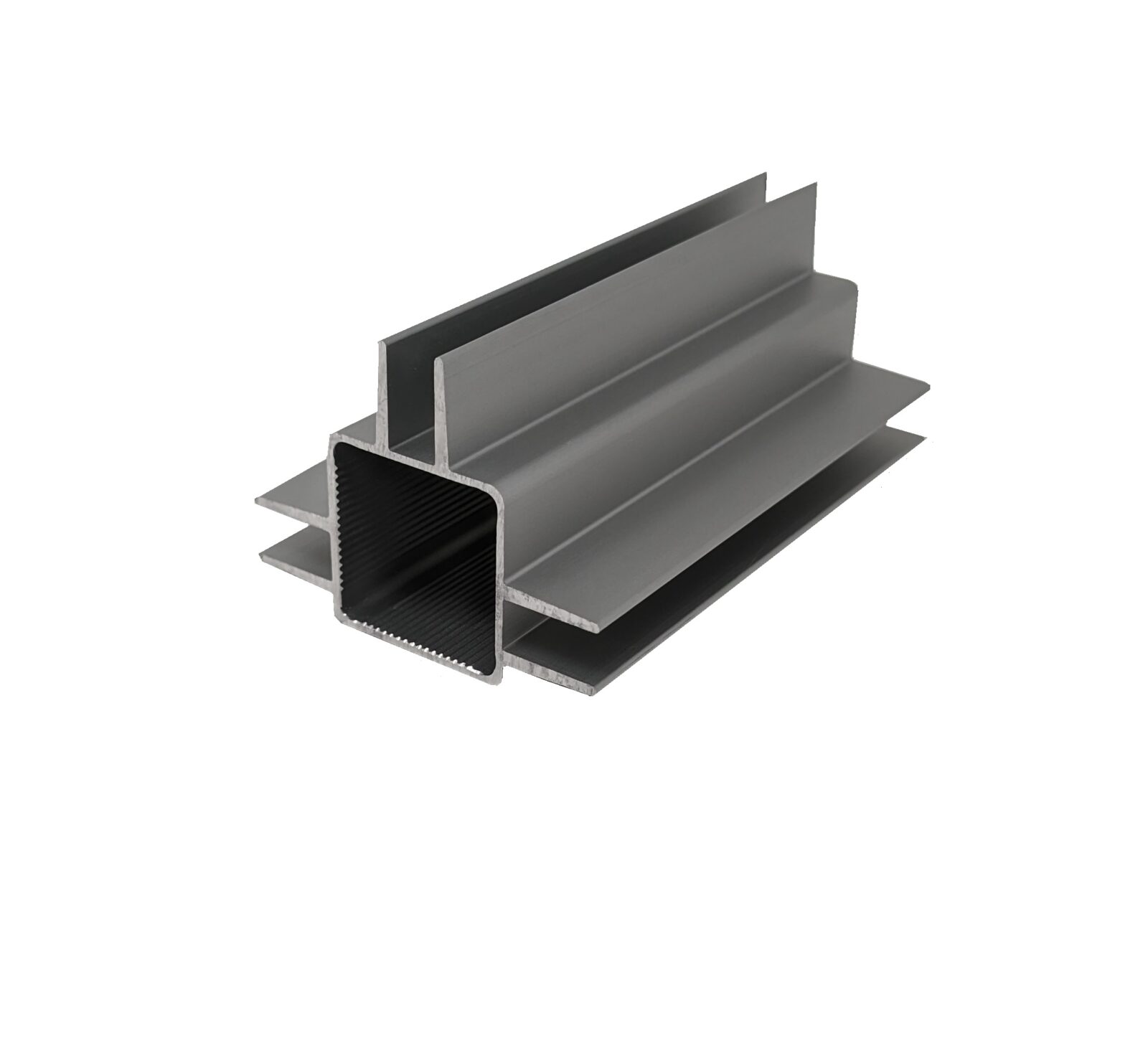

280-S 3-Way T-Slotted Captive Extended Fin Square Aluminum Extrusion for 1/4″ Panel

$18.00$43.00

3-Way Captive Fin for 1/4″ Panel (Extended Fin)
Standard Lengths: 48 & 94 Inches (98 Inches Available)
Finishes Available: Black, Clear Satin Anodize, and Custom Colors

        Use with the following extrusions:

       100-100  and 100-250-S, 100-260-S, and 100-270-S

        Assembles with all Connectors

Clear

For use with our snap-fit Quick-Release connectors

# of cut pieces per tube

Length of custom cuts
Example: (5) @ 10.00″, (10) @ 6.00″

Specify the number of custom holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

Quantity Discount Price
99 – 148 1% From $17.82
149 – 198 3% From $17.46
199+ 5% From $17.10
SKU: 100-280-S Categories: ,

Aluminum Extrusions

3-Way Fin for 1/4″ Captive Panels (Extended 1/2″ High Fin)

  • 6063 T-5 Aluminum
  • Size: 1.00″ Square
  • Wall Thickness: .050″
  • Finishes Available: Clear Satin Anodize
  • Custom Cutting Options Available

Additional Information

Weight 3 lbs
Dimensions 94 × 1 × 1 in
Tube Color
Gloss White Powder Coated
Satin Silver Anodized

Clear Satin Silver Anodized

Matte Black Powder Coated
Tube Length 48 in.

4 foot (48 inch)

, 94 in.

94 inch (7.8 feet)

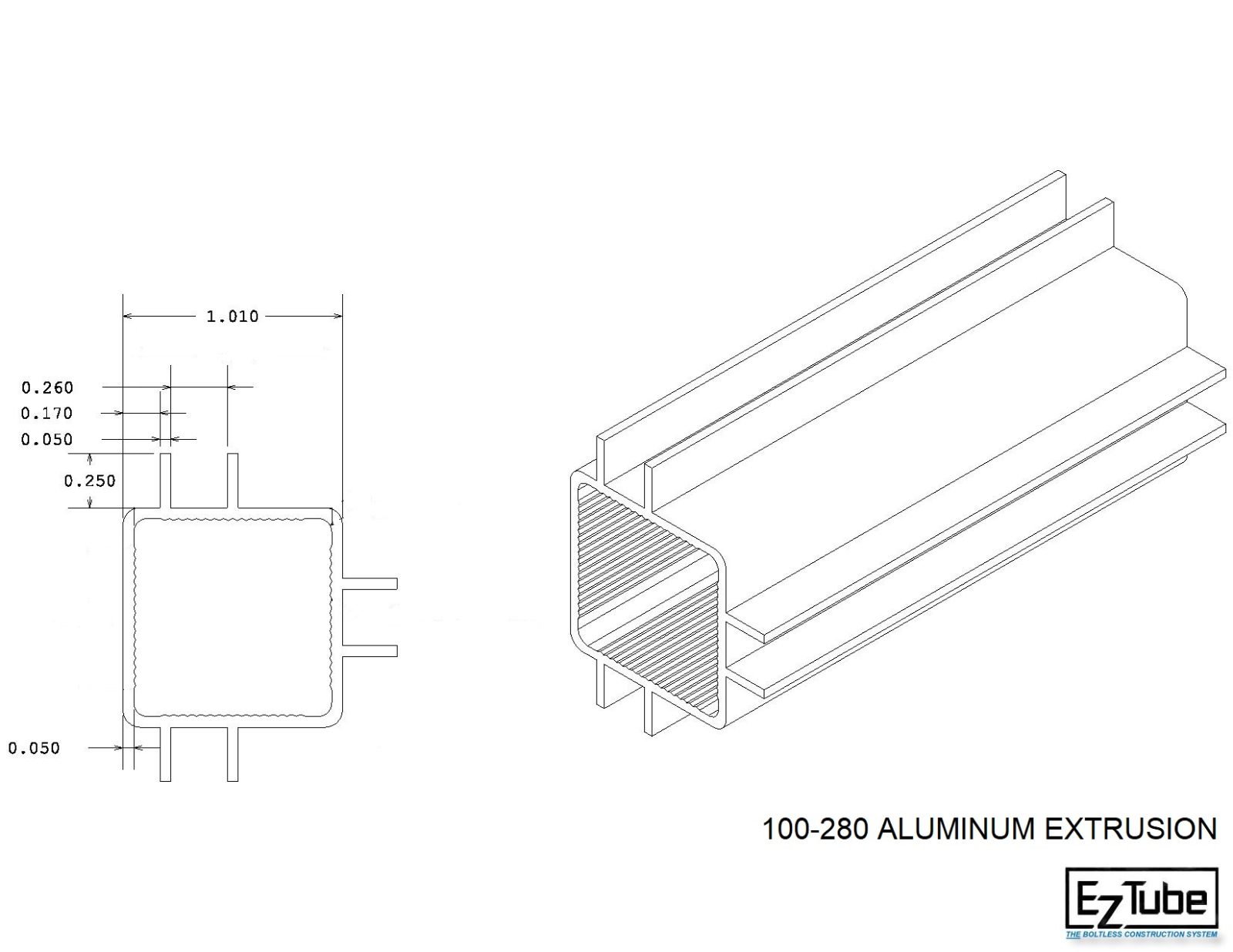

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-280
