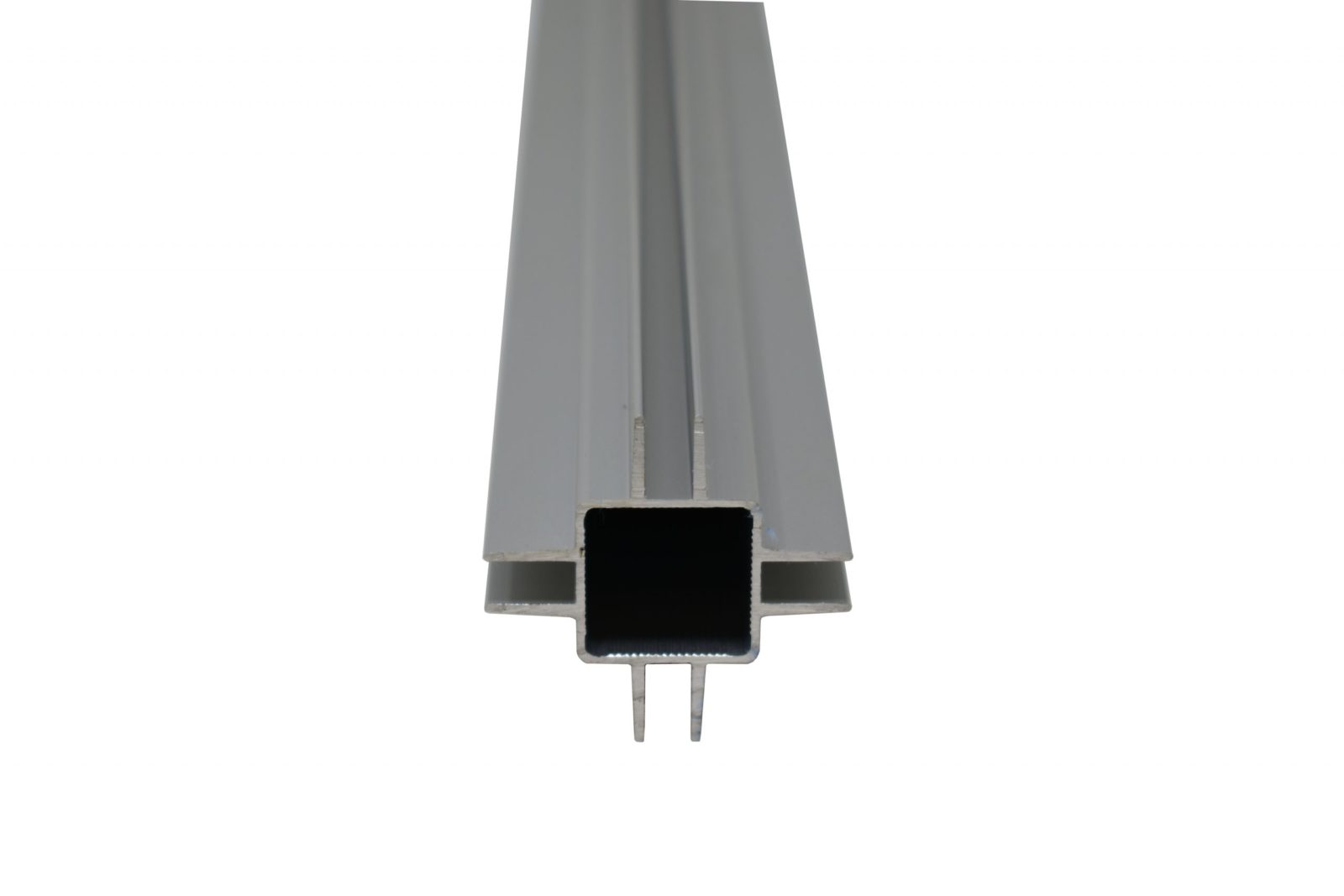

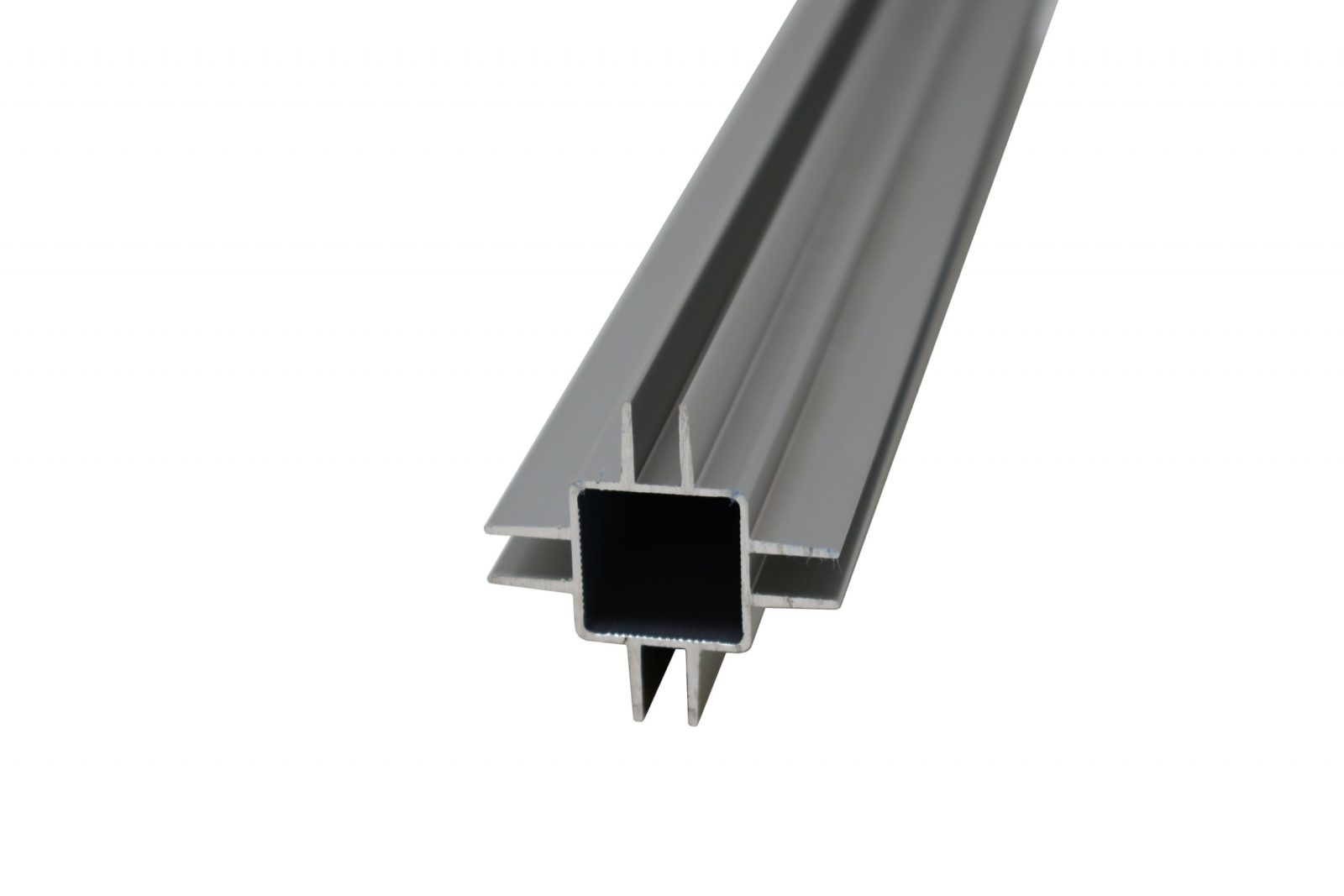

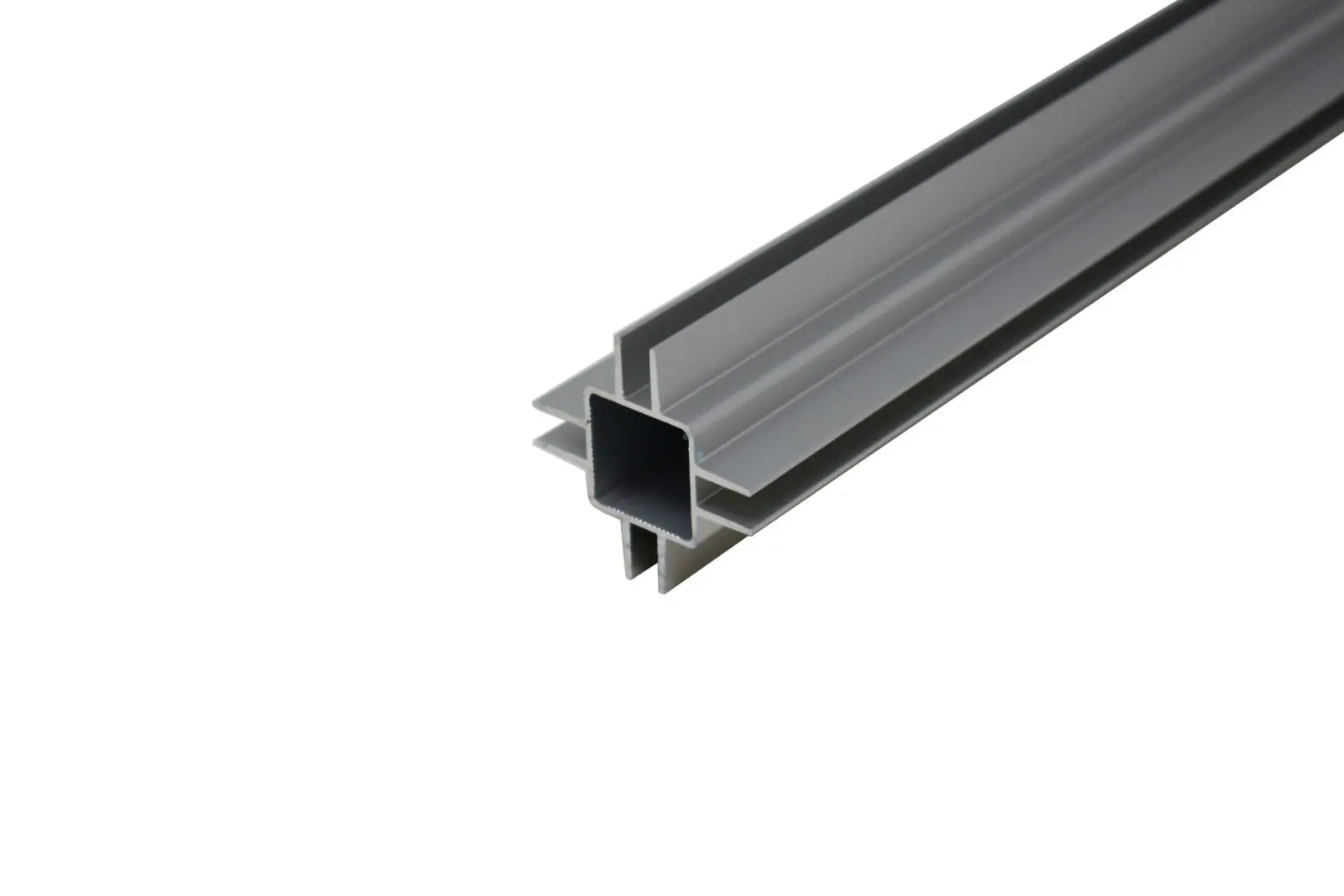

100-290-S 4-Way Extrusion (Centered) for 1/4 inch Captive Panel
100-290-S 4-Way Extrusion (Centered) for 1/4 inch Captive Panel
100-290-S 4-Way Extrusion (Centered) for 1/4 inch Captive Panel

290-S 4-Way Cross T-Slotted Linear Guide Frame Square Aluminum Extrusion for 1/4 inch Captive Panel

$19.38 – $43.75

Four-Way Extrusion Aluminum (Centered) for 1/4″ Captive Panel

Standard lengths:  48 & 94 Inches (98 Inches Available)

Finishes Available: Black, Clear Satin Anodize and Custom Colors

Use with the following extrusions:

100-100, 100-255-S, 100-263-S, 100-273-S, 100-283-S

Assembles with all Connectors





Gloss White Powder Coated
Satin Silver Anodized
Matte Black Powder Coated
Clear

For use with our snap-fit Quick-Release connectors

# of cut pieces per tube

Length of custom cuts
Example: (5) @ 10.00″, (10) @ 6.00″

Specify the number of custom holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

Quantity Discount Price
99 – 148 1% From $19.19
149 – 198 3% From $18.80
199+ 5% From $18.41
SKU: 100-290-S Categories: , Tags: , ,

Description

100-290-S Cross-Slotted Linear Guide Frame Extrusion for 1/4 inch Captive Panel

Standard lengths:  48 & 94 Inches (98 Inches Available) Finishes Available: Black, Clear Satin Anodize and Custom Colors Use with the following extrusions: 100-100, 100-255-S, 100-263-S,100-273-S, 100-283-S Assembles with all Connectors

Additional information

Weight 2 lbs
Dimensions 94 × 1 × 1 in
Tube Color
Gloss White Powder Coated
Satin Silver Anodized

Clear Satin Silver Anodized

Matte Black Powder Coated
Tube Length 48 in.

4 foot (48 inch)

, 94 in.

94 inch (7.8 feet)
