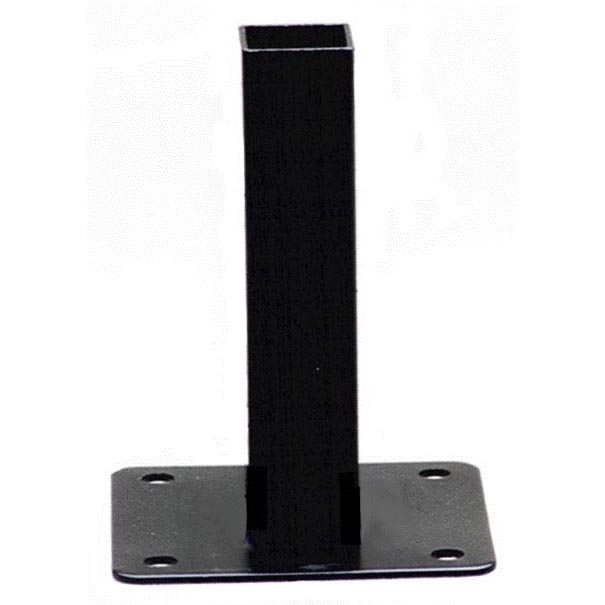

4 Inch Baseplate, Black
Material: Mild Steel
Length: 4.00 inch
Finish: Matte Black Powder Coat
100-346 base plates fit inside EZTube tubing.
Used for attaching frame structures to horizontal and vertical surfaces.
Fasteners not included. Can be drilled for Quick Release Connectors
Inserts in: Aluminum Extrusions, Steel Tube, Stainless Steel Tube
Additional Information
Weight | 0.5 lbs |
---|---|
Dimensions | 4 × 3 × 3 in |

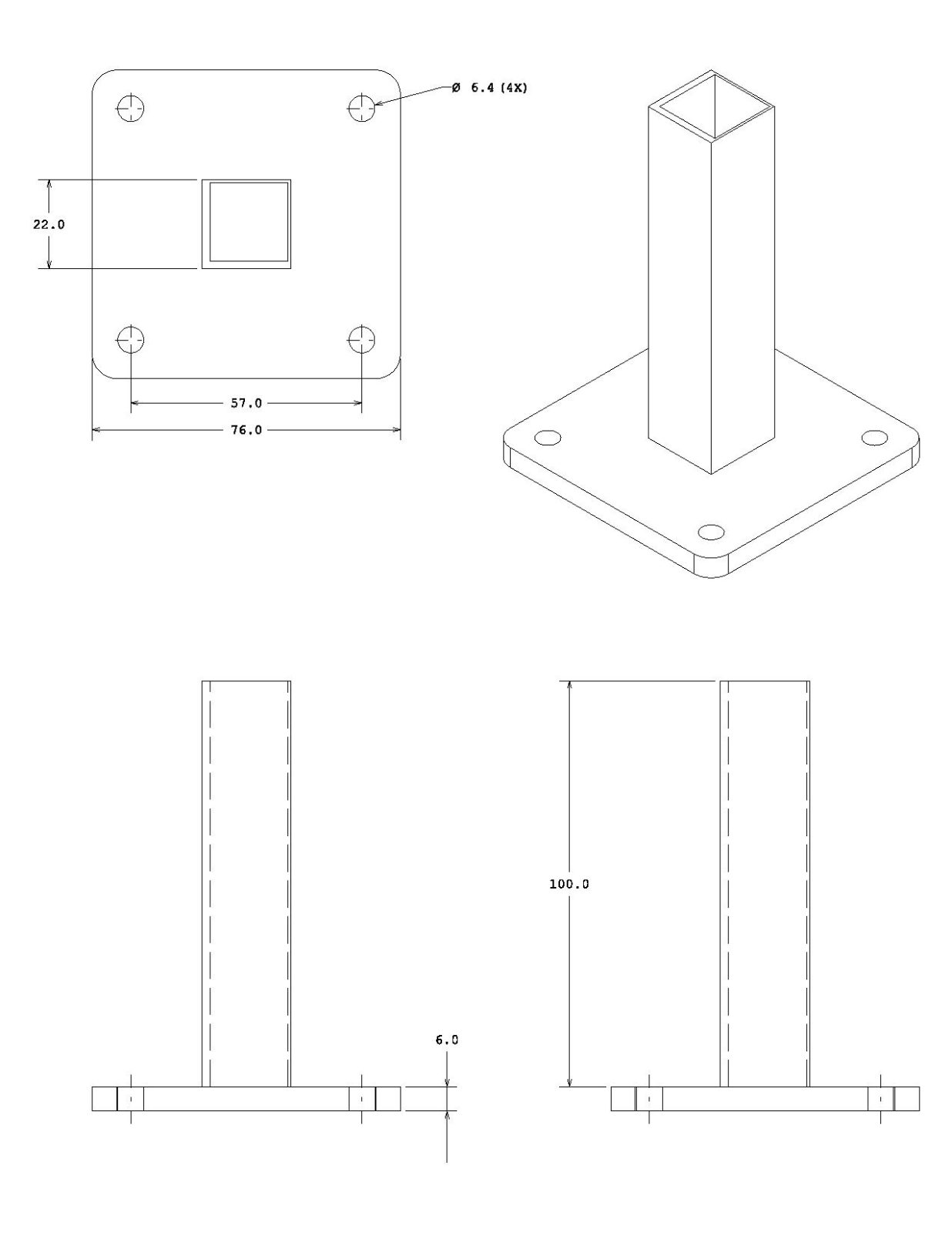

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.
100-346.eAsm
100-346.igs
100-346.stp
100-346.x_b
100-346.x_t
100-346.dwg
