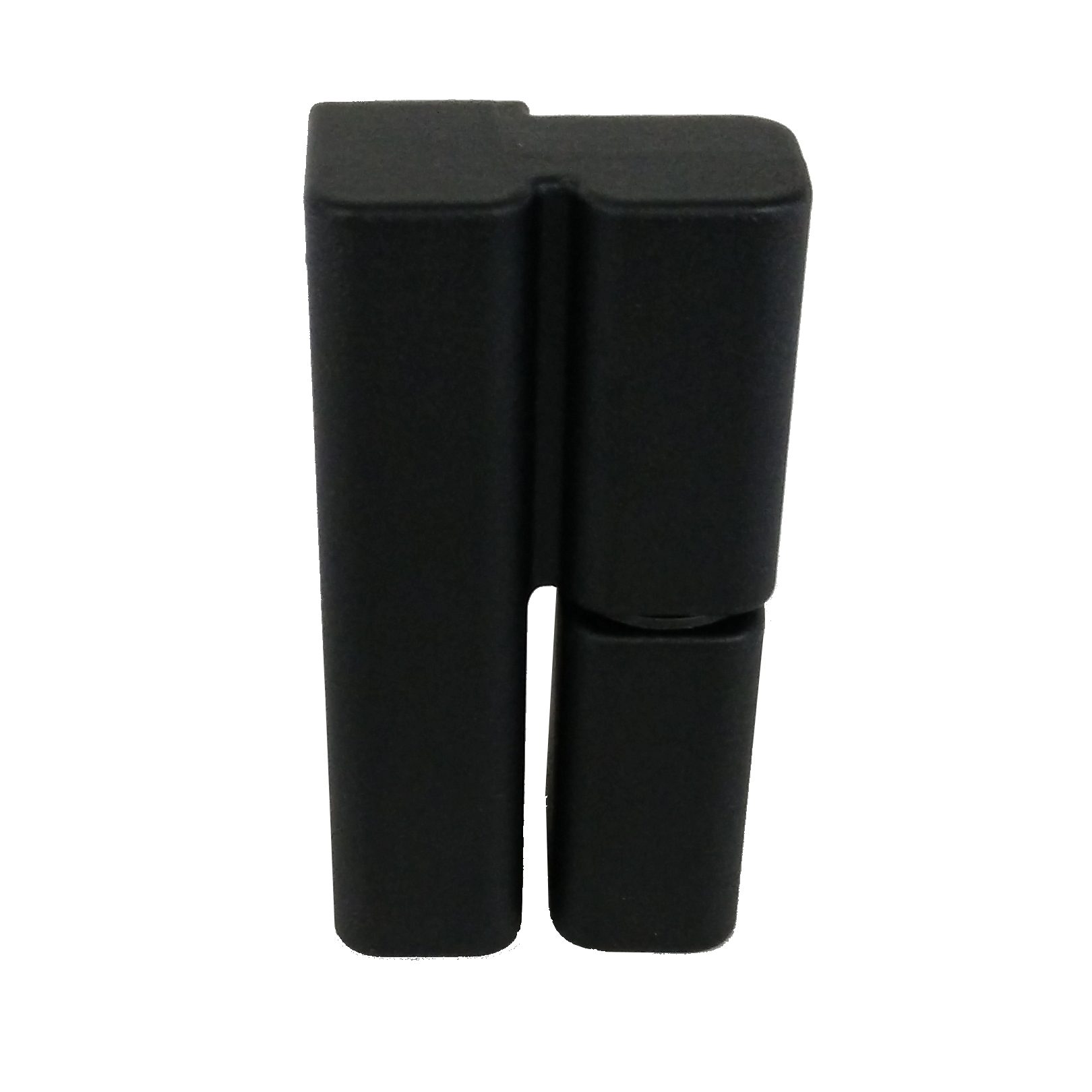

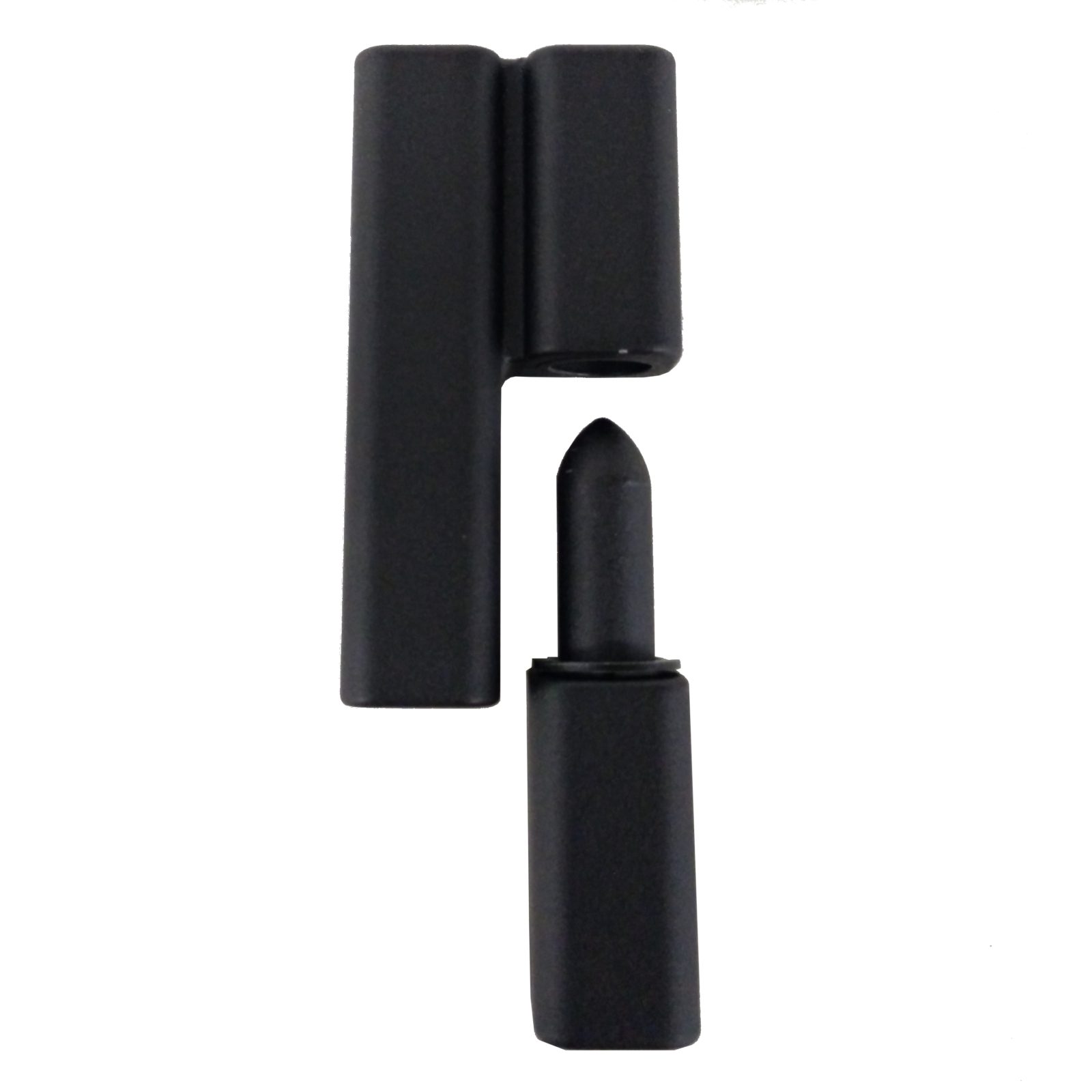

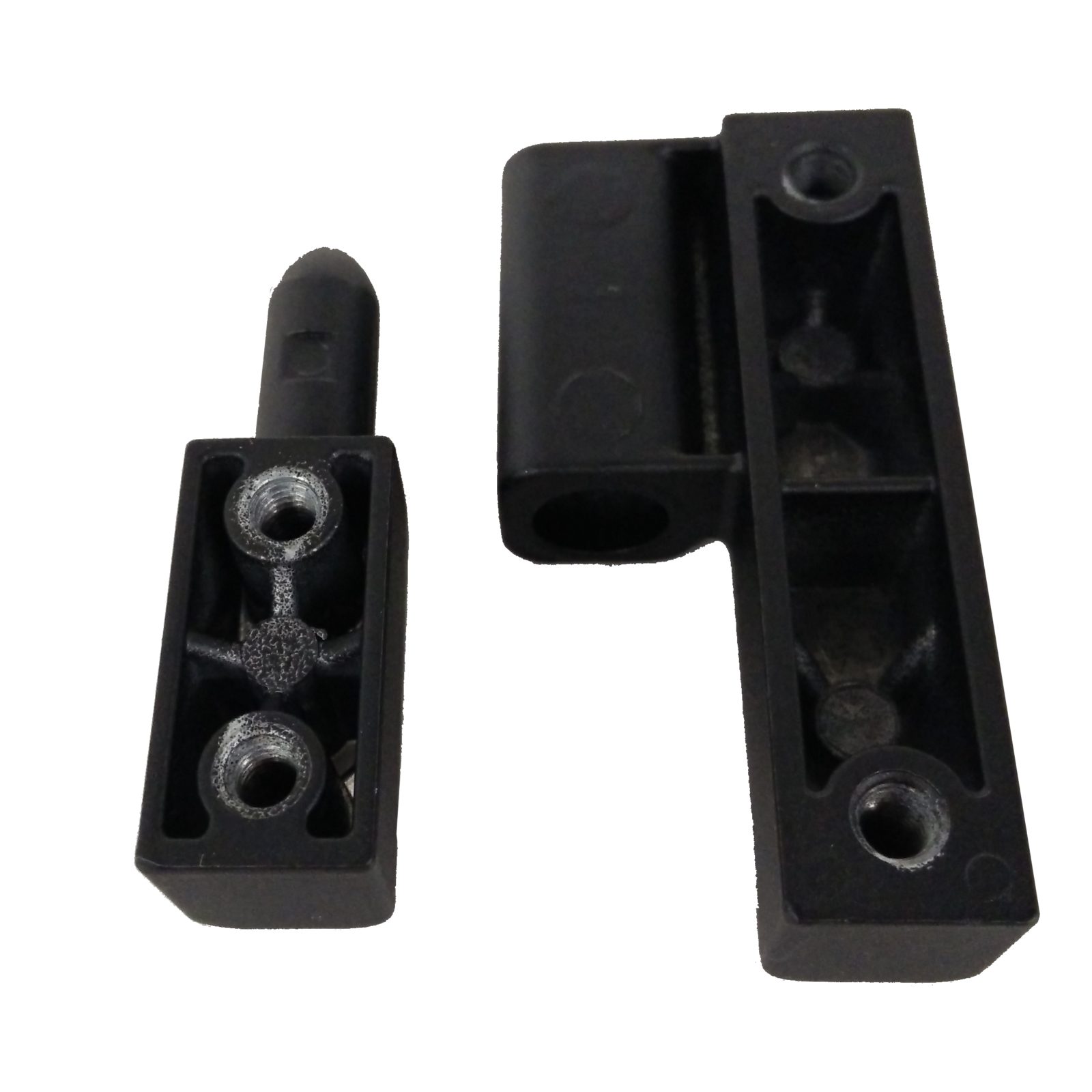

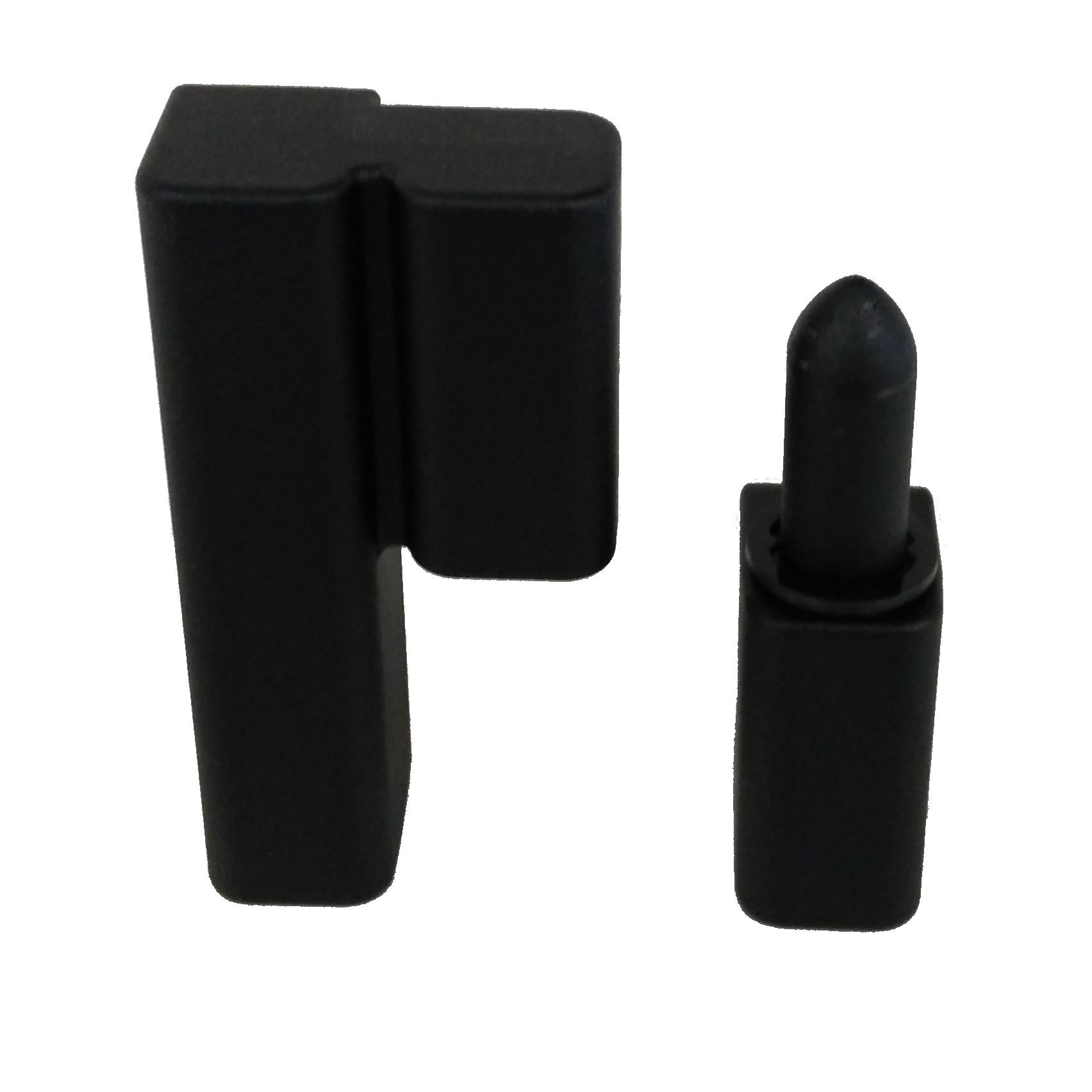

100-343 Metal Lift-Off Hinge (Left Hand)

$16.00

SKU: 100-343 Categories: ,

Product Description

Material: Die-Cast Zinc.

Finish: Black Powder Coat.

Mounting Thread Size: 10-32

Weight: .5 lbs.

Additional Information

Weight 0.5 lbs
Dimensions 2 × 2 × 1 in

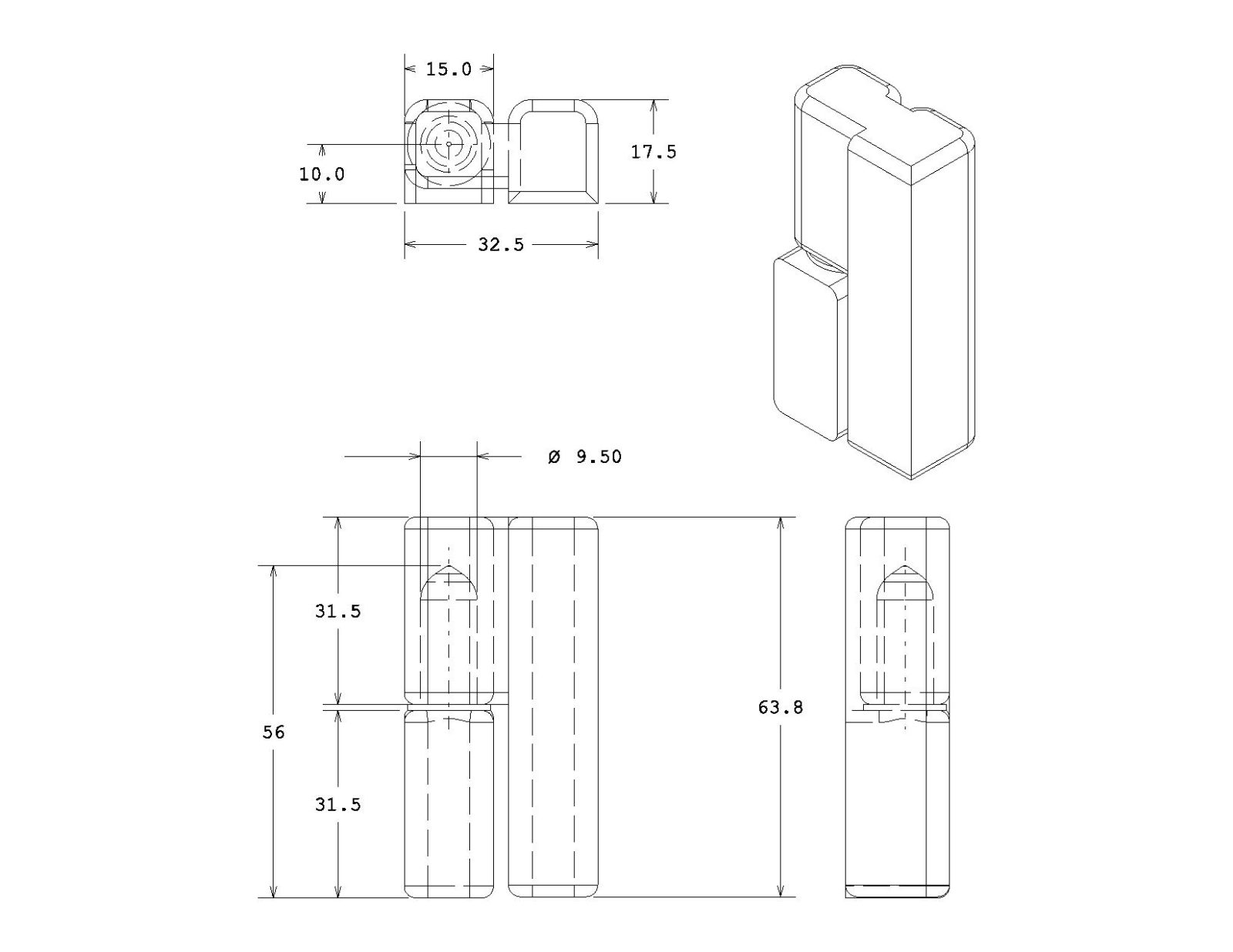

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-100-98in0001

100-343.eAsm
100-343.igs
100-343.stp
100-343.x_b
100-343.x_t
100-343.dwg

100-343 Metal Lift-Off Hinge (Left Hand)
